WELDING ELECTRODES PRODUCTION LINES
The line straightens and cuts the steel wire as it comes out of the dry drawing process and is used especially for the production of electrode welding sticks.

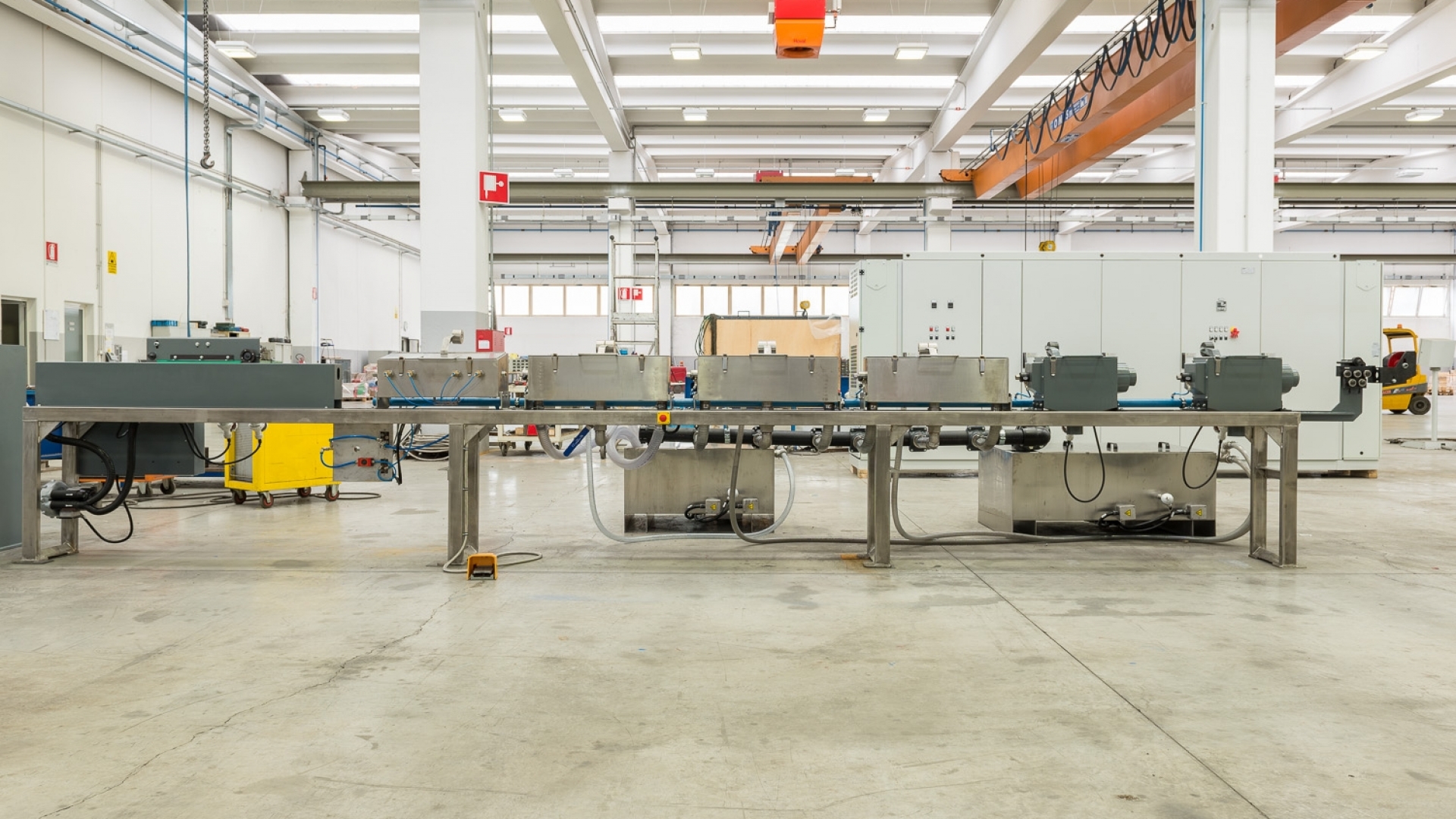

Installed at exit side of the wire drawing machine, the unit consists of two stages: the first degreases the wire, while the second straightens and cuts the wire at high speed.
Installed at exit side of the wire drawing machine, the unit consists of two stages: the first degreases the wire, while the second straightens and cuts the wire at high speed.
Main Features:
- 4+4 motorized rolls with pneumatic closing;

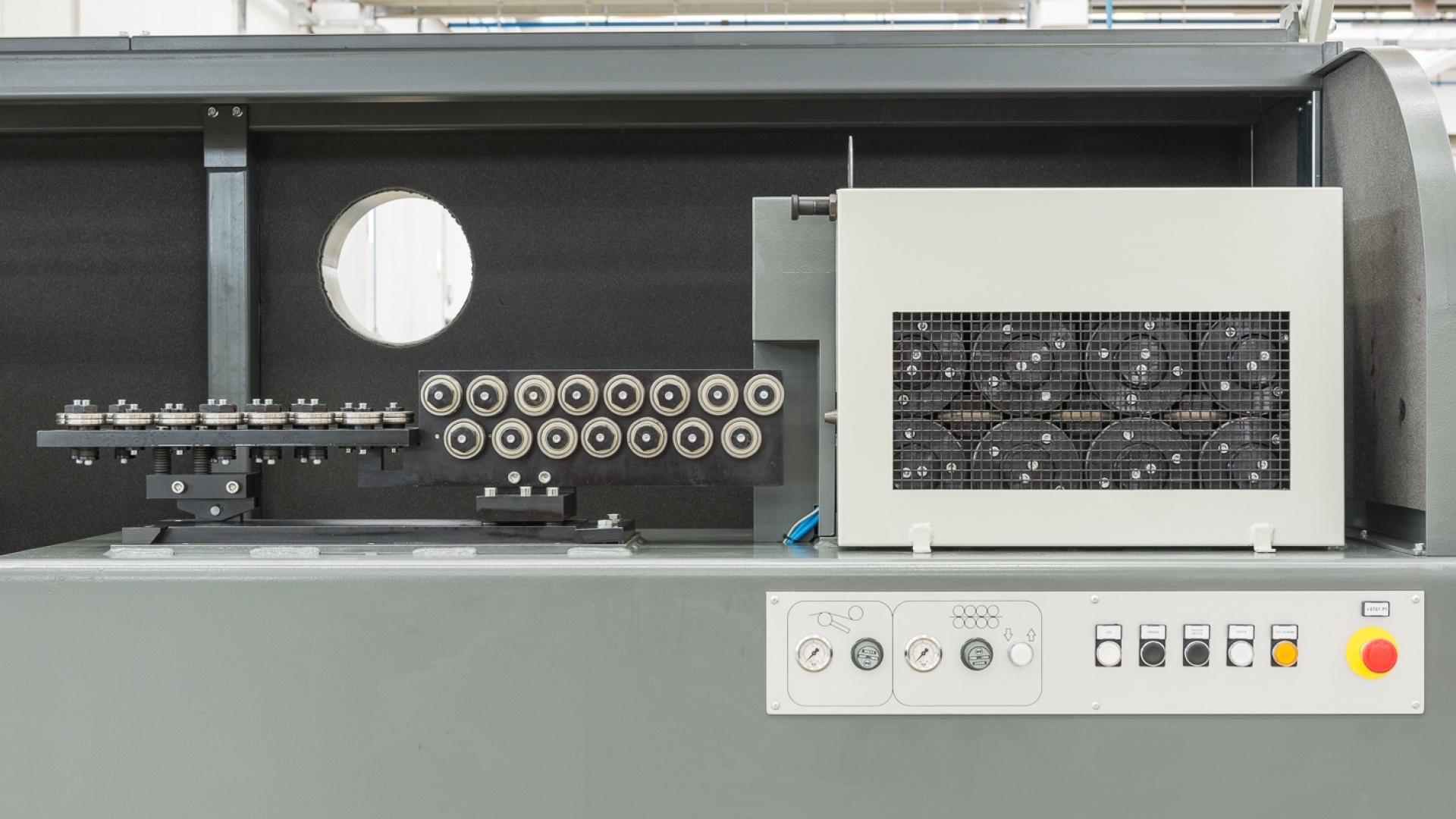

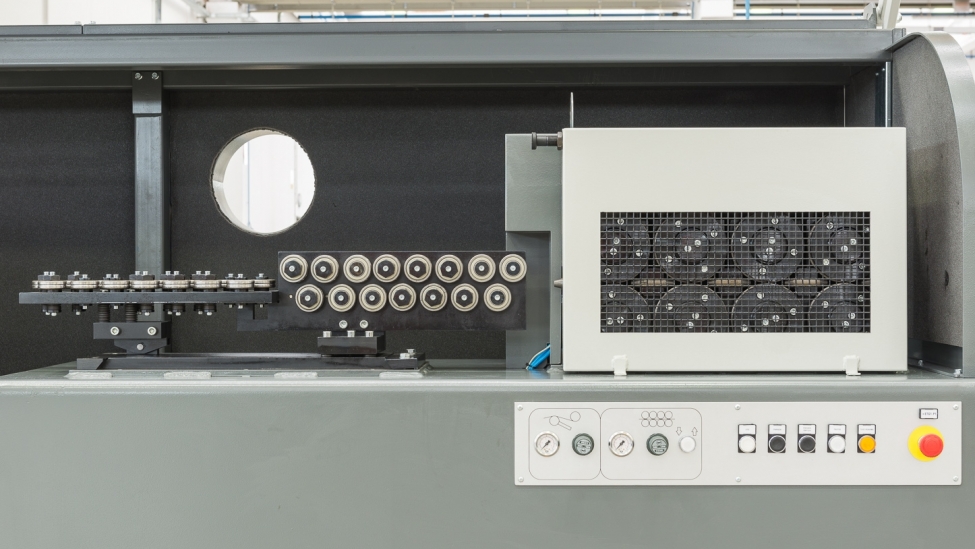

- Two roll-straightening panels placed at 90°, each composed of 8+9 rolls;
- Rotary shear;
- Belt extractor;
- Welding stick discharge revolving unit;
- Welding stick container with layering system and pusher.
| RTE Series | ||
|---|---|---|
| WIRE Ø | [mm] | 2.0 ÷ 6.0 |
| STICK LENGTH | [mm] | 300 ÷ 600 |
| MAX. OUTPUT | [pc/min] | 1500 |
| MAX. SPEED | [m/s] | 10 |
